Clients want fresh food
How to meet client's demands? The MAP machines perfective find the
way to work this problem out. Our modified packaging machine series
is designed to keep food products fresh at small to medium
capacity, maximise food safety and exceed consumer's expectations.
They are used for the packaging of meat products, seafood, fruits,
vegetables and all kinds of chilled food products.

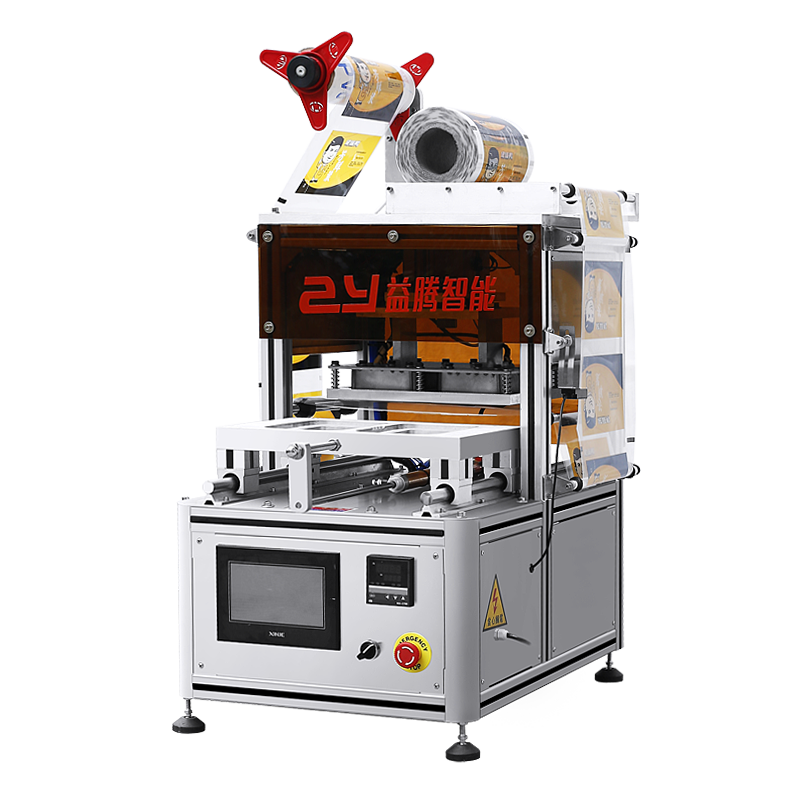

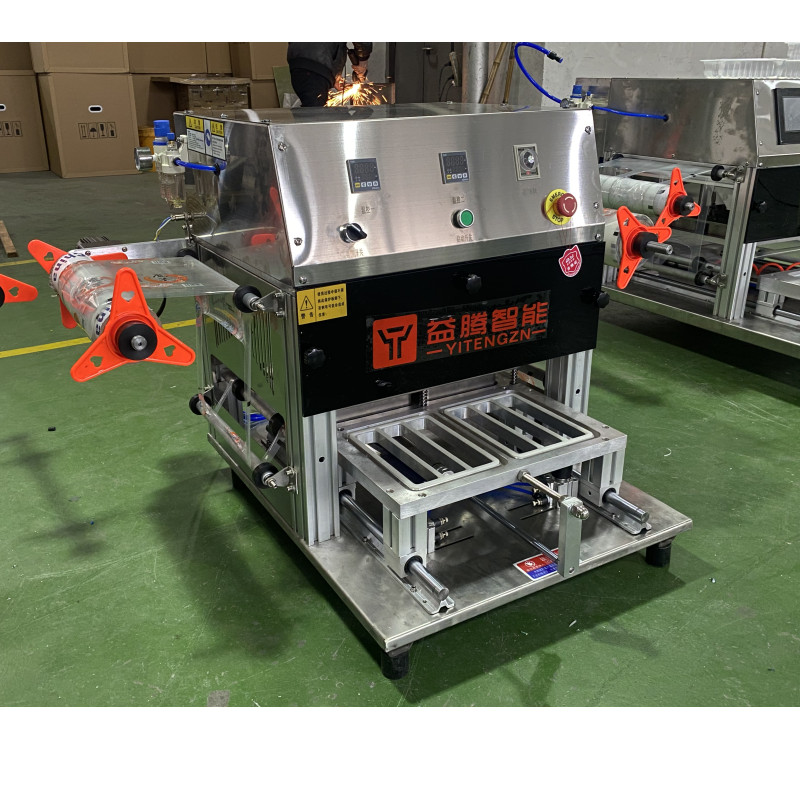

YT-500 series nitrogen vacuum tray sealing machine is the perfect
equipment for keeping the food or vegetable fresh. The machine
adopts built-in PLC control system, intelligence digital
temperature controller, CHINT relay, Taiwan Airtac cylinder, US
Imachine/German WITT gax mixer/Our own YiTeng gas mixer. The
machine is stable and durable equipment, and takes little space.
Our MAP machines gas replacement rate reach >98%. The mixing
accuracy error of fresh-keeping gas: US Imachine gas mixer or
German WITT gas minxer <0.5%; Our own home made Yiteng mixer,
for fixed rate it is < 1%, Adjustable proportioning mixer is
< 5%, it's up to customer's demands.
Technical Specifications:
| Product name: | Semi-auto Vacuum MAP Machine Tabletop |
| Voltage: | 110V-220V 50-60Hz / customized |
| Power: | 1600W |
| Air displacement vacuum pump: | 40 m³/h |
| Limit Vacuum: | -0.1MPA |
| Aire pressure: | 0.6Mpa |
| Dimensions: | 760*550*750mm |
| Packing speed: | 600-800 container/hour |
| N.W.: | 45kgs |
| G.W.: | 55kgs |
| Body material: | SUS304 , 6061 Aluminum alloy molds |
| Plastic tray dimensions: | 20*14cm, 18*12cm, 14*14cm, other size can be customized |
| Vacuum Pump: | 100 m³/hour |
| Air compressor: | 0.6-0.8Mpa |
| Driving mode: | Electric & pneumatic |
| Gas consumption: | 0.4 m³/min |
PRODUCTS FEATURE:
1. Safety: Equipped with emergency stop; Alarm; Open-phase
protector; anti-phase protector.
2. Cutting attchment(trims edge up to 2mm).
3. Biult in PLC control system provides a user-friendly interface.
4.The photoelectric cursor sensor automatically tracks and corrects
the sealing position, precise alignment of film printing
5. Thermostat temperature regulator control the heating, the
temperature difference is stable at±2 degrees.
6. The machine can install with/without gas mixer/vacuum pump,
according to customer's demand.

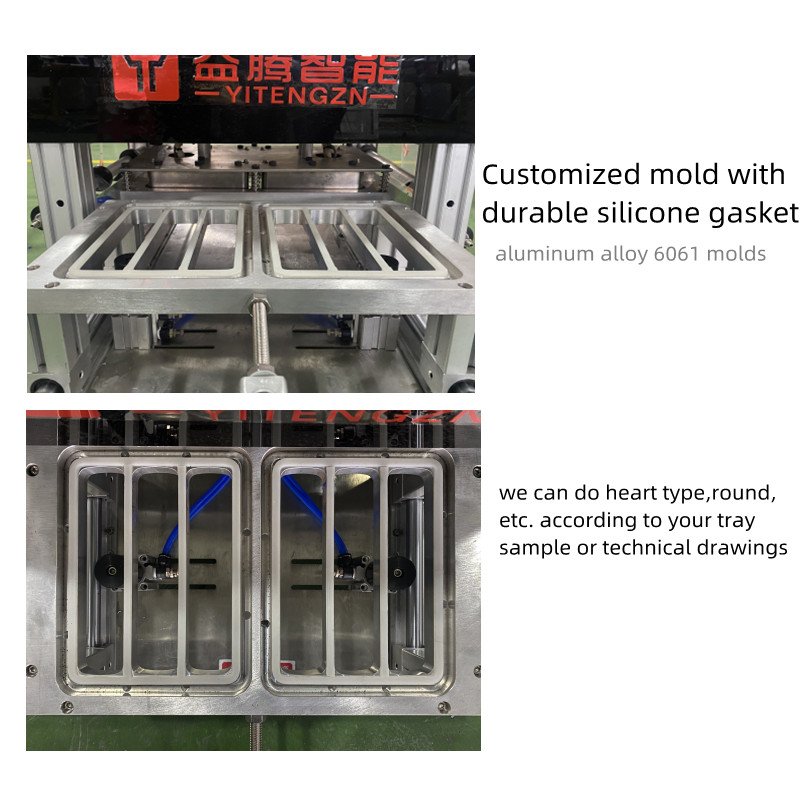

7. The mold can designed to have many shapes according to
customer's sample or technical drawing.
