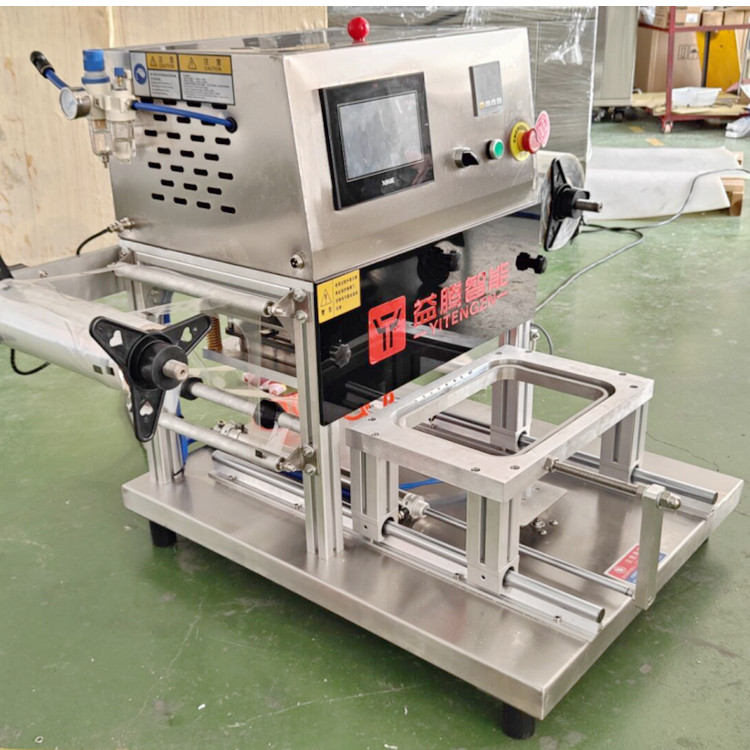

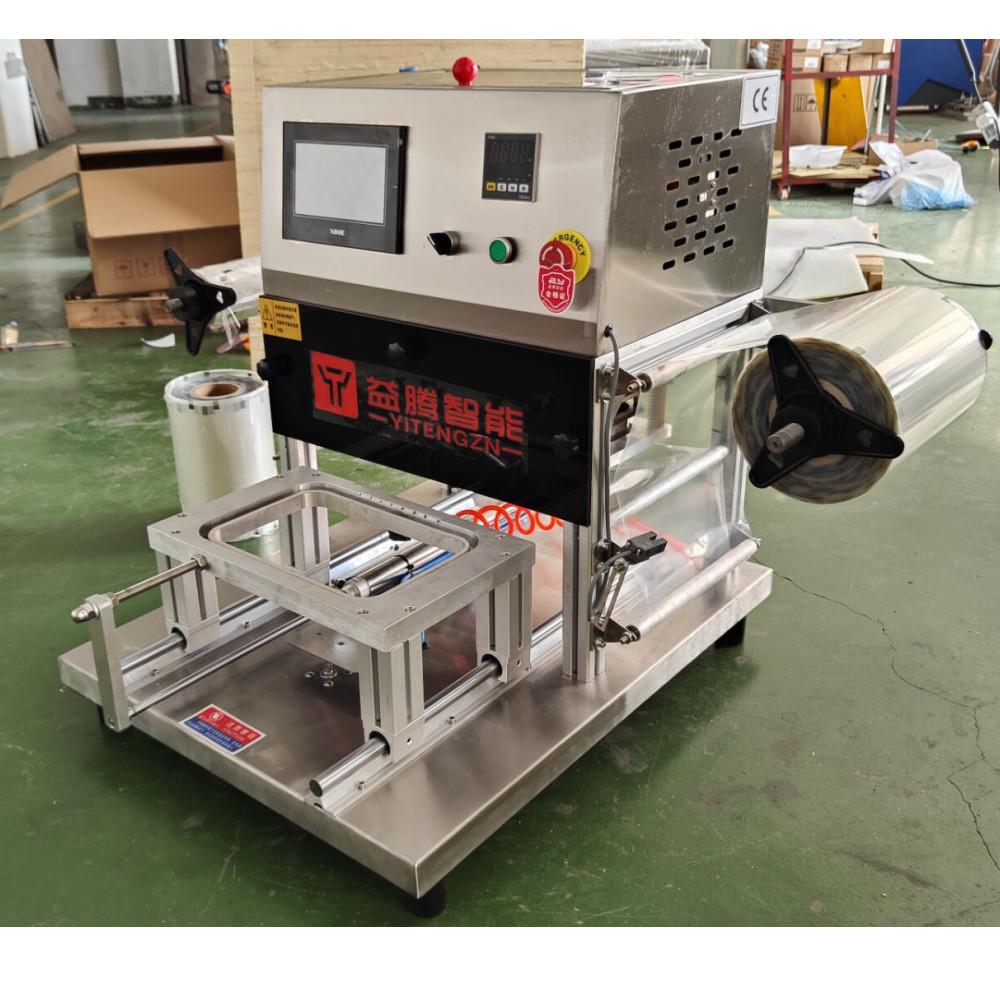

Tabletop SUS304 Food Tray Sealing Packaging Machine
1. It is a Pneumatic Operation Sealing Machine, customer need to
prepare an air compressor.
2. Using roll film or flat aluminum film to seal the food
container.
3. We can suppl free film design for customer if necessory.
4. Usually for 2 in 1 roll film, it's 5kg/roll, and it can seal
1200 pcs containers.
5. MOQ is 1 set, about 15 days to load.
6. It can configure with MAP and Vacuum function.
Related parameters:
| Product name: | YT-500T MAP Machine Tabletop |
| Voltage: | 110V-220V 50-60Hz / customized |
| Heating Power: | 1600W |
| Air displacement vacuum pump: | 40 cubic meter/hour |
| Limit Vacuum: | -0.1MPA |
| Air pressure: | 0.6Mpa |
| Dimensions: | 480*780*780mm |
| Packing speed: | 500-600 container/hour |
| N.W.: | 50kgs |
| G.W.: | 75kgs |
| Body material: | SUS304 , 6061 Aluminum alloy molds |
| Plastic tray dimensions: | 20*14cm, 18*12cm, 14*14cm, other size can be customized |
| Air compressor: | 0.6-0.8Mpa |
| Driving mode: | Electric & pneumatic |
| Max. width of the film: | 330mm |
| Max. Dia. of the film | 280mm |
PRODUCTS FEATURE:
1. Cutting attachment (trims seal edge up to 2mm).
2 Rigid structure made from stainless steel and corrosion resistant
aluminum, ensure the highest food hygiene standard.
3. Automatic thermostat controller, the temperature difference is
stable between ±0.5 degree Celsius.
6. Suitable for many materiasl (PE, PP, paper, and easy tear film).
7.Using cursor sensing, precise film sealing the containers, the
food will not leak out.
8.Packaged food can be microwaved, but the film must be torn off a
bit.
---Tray size
* It can pack several trays at the same time, which depends on your
actual tray size.
* Above layout is just for reference. The tray size not limited in
above size.
* Accordingly to actual tray sample, the tooling of machine will be
individually built for clients.
We also supply free film design for customer optional:
