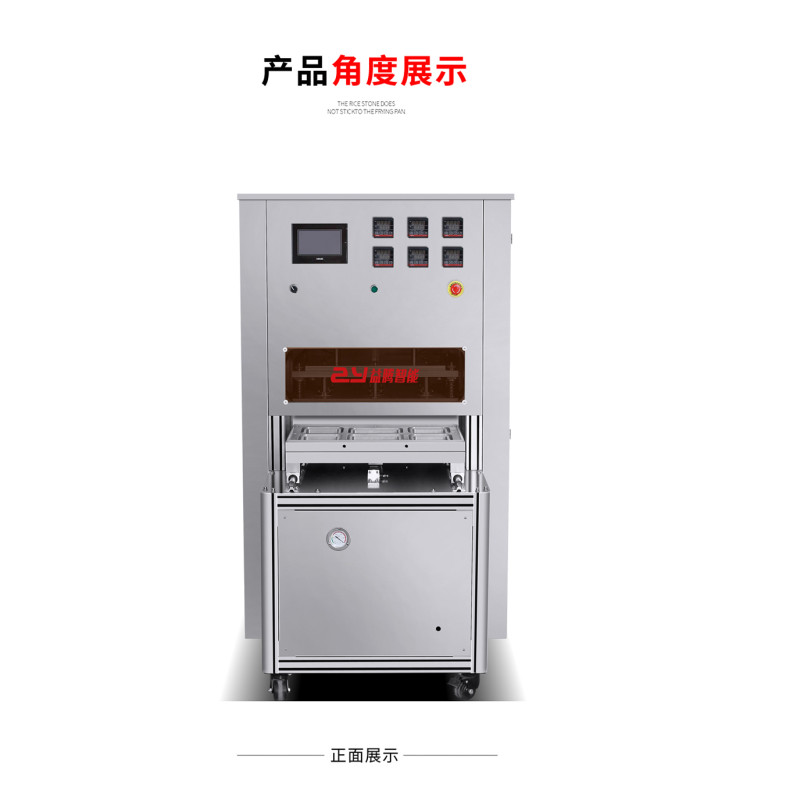

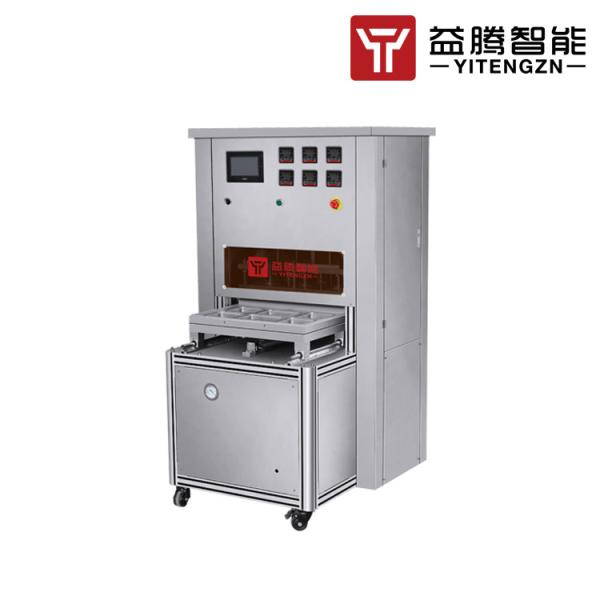

Tray Type Vacuum MAP Packaging Sealing Machine Gas flushing
YiTeng Machinery
The basic principle of the MAP tray sealer machine is packing the
food in the plastic tray, vacuum firstly, then fill the protection
gas into the trays and sealing film, 99.5% gas replacement rate,
keep food fresh longer time and natural color. The packed food
healthy, safe, good looking and prevent the pollution of food.
Products that previously could not be stored fresh throughout the
distribution chain can now be offered in shops without sacrificing
quality. There are clear economic advantages for companies who use
MAP.
1. YiTeng modified atmosphere packaging is made of food-grade
SUS304 stainless steel and solid Aluminum magnesium alloy, inline
with food hygienic regulations, guarantees the longest service
life, and best MAP packaging quality.
2. A coding machine & a labeling machine is optional if customer
needs.
3. Built-in cutter,dry and moist modes led indicator lights,
suction hose jars and container food gas flush
4. The gas replacement rate: >98%.
5. The mixing accuracy error of fresh-keeping gas: US Imachine gas
mixer or German WITT gas minxer <0.5%; Our own Yiteng mixer, for
fixed rate it is < 1%, Adjustable proportioning mixer is <
5%, it's up to customer's demands.
Product details:
Applications:
Main related configurations:
* Touch screen display: Shanghai FLEXEM
* Circuit breaker& transformer: Zhejiang CHINT
* Vacuum pump: ZD--Shanghai
* Temperature controller: SINNY--Zhejiang
* Motor: OUBANG-Jiangsu
* Gas mixer instrument: US Imachine/ German WITT/ YiTeng, it's
optional.
* PLC control systerm: XINJIE
Product Prameters:
| Item: | Food Tray MAP Packing Machine | Body material: | SUS304 /Aluminum Alloy |
| Voltage: | 220V/380V 50-60Hz | Vacuum pump: | 100m³/h |
| Power: | 2400W | Air compressor: | 0.6-0.8Mpa |
| Air displacement vacuum pump: | 100 m³/h | N.W.: | about 250kgs |
| Product Size: | 700*900*1450cm | G.W.: | about 300kgs |
| Packing speed: | 800-900 pcs/h | Air compressor: | 0.6-0.8Mpa |
| Driving mode: | Electric + Pneumatic | Air consumption: | 0.6 m³/h |
* Tray size: the Tray size is not limited in above sheet, we will
make the molds according to your packing cups size.
* The air compressor is not included in the price, customer need to
buy seperately.
Product Features
1. Structure Material: Machine main structure material adopt food
grade 304 stainless steel, which is comply with hygiene for machine
used in food industry.
2. Applies “Vacuum – Gas Filling” technology. Vacuum the chamber
first, then fill in gas, much better than the old-fashion gas
flushing method, which guarantees gas purity, and saves gas
sources. If vacuum is not necessary, we can also make the machine only with
gas flushing.
3.Taiwan AIRTAC pneumatic elements.
4.Cutting attachment (trims seal edge up to 2mm).
5. Rigid structure made from stainless steel and corrosion
resistant aluminum, ensure the highest food hygiene standard.
6.Touch screen display with PLC control system provides a
user-friendly interface.
7. Very safe operations due to multiple impact resistant acrylic
panels.
8. Suitable for many material (PE, PP, paper, and easy tear film).
9.Digitally controlled vacuum and gas flushing.
Why Choose Us:
Wenzhou YITENG Intelligent Equipment Company is a manufacture
located in #61 Building,Times Founders Park, Mayu Town, Ruian City,
Zhejiang Province. We are specialized in the production of Filling
Machines, Sealing Machines,Labeling Machines,Capping Machines,
coding Machines, Vacuum Packing Machines, Shrink Packing
Machines,and other machines. Buying from factory the price is
competitive and it’s helpful for you to get bigger market in your
country. Factory has powerful and rich experience of technical
team. Customers can always count on us. All customers are always
allowed to customize their own modified atmosphere packaging
machine by contacting us with requirement details.
