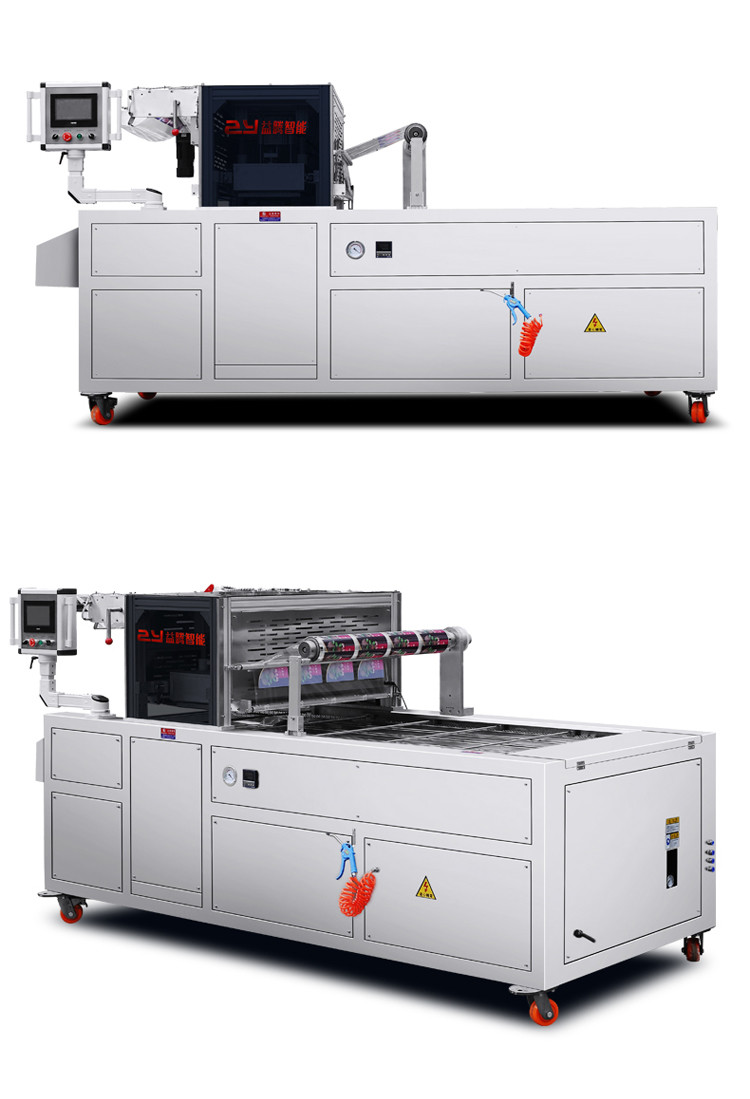

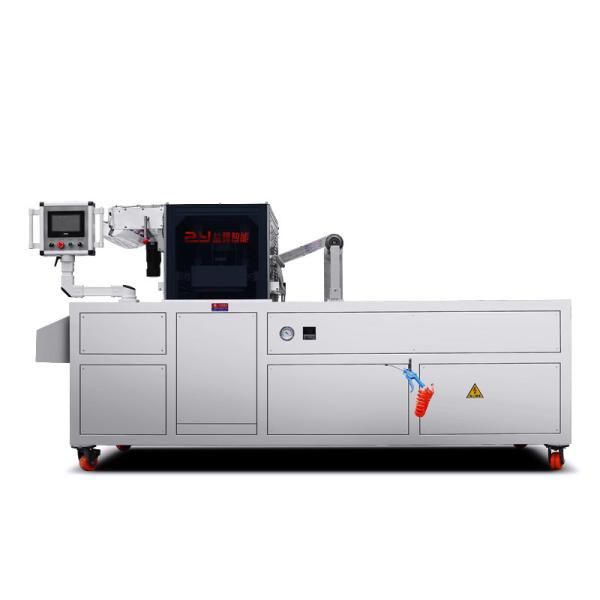

Continuous Production Line Modified Atmosphere Packaging Machine
Gas Flush
YiTeng® Machinery
Our MAP machine series is a modified atmosphere packaging machines
which offering a wide range of machines to meet customer's demands,
to assist in extending shelf life and maintaining food quality.
Through a certain proportion of mixed gas of O2+ CO2 + N2, N2 +CO2 and O2+CO2 is added into the packaging to prevent or decline the food
spoilage.
The whole machines are all 304 stainless steel for easy sanitation
in wash down environments. The easy open frame allows access to
check, adjust, and repair all parts of the machine. You’ll find
that our YiTeng solutions can minimize your headaches and downtime
while maximizing your productivity and output.
Several options with different features can be added to the
machines to fulfill any packaging demand.
We also can make various molds according to customer's demands and
easy to change the molds by single person.
Product details:
Product Prameters:
| Item: | YT-1000C/4 Continuous Vacuum MAP Machine |
| Voltage: | 110V/220V 50-60Hz |
| Power: | 6500W |
| Air displacement of Vacuum pump: | 63 m³/h |
| Limit Vacuum: | -0.1Mpa |
| Air pressure: | 0.6Mbar |
| Product Size: | 300*120*150cm |
| Packing speed: | 800-1500 pcs/h |
| Body material: | SUS304 / 6061 Aluminum Alloy |
| Plastic tray dimensions: | 20*14cm, 18*12cm, 14*14cm, customized |
| Vacuum Pump: | 100m³/h |
| Air compressor: | 0.6-0.8Mpa |
| Driving mode: | Electric + Pneumatic |
| Gas consumption: | 0.45m³/min |
* Tray size: the tray size is not limited in above sheet, we will
make the molds according to your packing tray size.
Product Features
1. Applies “Vacuum – Gas Filling” technology. Vacuum the chamber
first, then fill in gas, much better than the old-fashion gas
flushing method.
2. Safety: Equipped with emergency stop; Alarm; Open-phase
protector; anti-phase protector, before operation the machine
again, need to screw out the evergency stop in advance.
3.Touch screen display with PLC control system provides a
user-friendly interface.
4.Quick change mold design allow for one machine to seal various
sized container for improved efficiency
5.The electric eye automatically tracks and corrects the sealing
position, precise alignment of film printing
6.Using famous domestic and foreign electrical appliances and
components,a coding machine can be installed according to
customer’s demand.
7. Free film design is acceptable if customer needs:
Why Choose Us:
Wenzhou YITENG Intelligent Equipment Company is a manufacture
located in #61 Building,Times Founders Park, Mayu Town, Ruian City,
Zhejiang Province. We are specialized in the production of Filling
Machines, Sealing Machines,Labeling Machines,Capping Machines,
coding Machines, Vacuum Packing Machines, Shrink Packing
Machines,and other machines. Buying from factory the price is
competitive and it’s helpful for you to get bigger market in your
country. Factory has powerful and rich experience of technical
team. Customers can always count on us. All customers are always
allowed to customize their own modified atmosphere packaging
machine by contacting us with requirement details.
