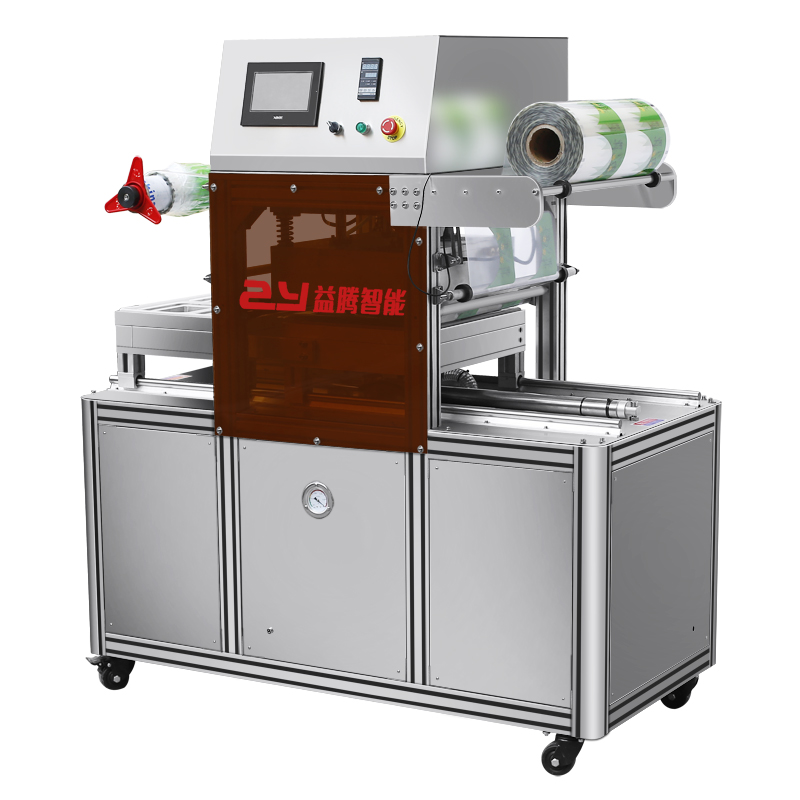

Tray Type Vacuum MAP Packaging Sealing Machine Gas flushing
YiTeng Machinery
1. This machine is suitable for all kinds of food box packaging,
automatic filling N2 or other gas miner, sealing packaging, cutting, packaging finished
products and other steps.
2. The control part adopts programmable controller to realize
man-machine interface dialogue with the touch screen, and the
actions and control parameters of each part can be set and modified
by the touch screen. Convenient and reliable control, accurate and
flexible, low failure rate; The whole process of packaging is
highly automated and the packaging yield is high.
3. The gas replacement rate: >98%.
4. The mixing accuracy error of fresh-keeping gas: US Imachine gas
mixer or German WITT gas minxer <0.5%; Our own Yiteng mixer, for
fixed rate it is < 1%, Adjustable proportioning mixer is <
5%, it's up to customer's demands.
5. We also have with/without vacuum(inflatable) type for your
choice.
Product details:
Related Products:
| YT-760L Vertical MAP Machine Series |
|---|
2 Trays/ cycle, 600pcs/h |
4 Trays/cycle, 2-Ways packing, 1800pcs/h |
4 trays/cycle, 800pcs/h |
6 trays/cycle, 1500pcs/h |
Applications:
Main related configurations:
* Touch screen display: Shanghai FLEXEM
* Circuit breaker& transformer: Zhejiang CHINT
* Vacuum pump: ZD--Shanghai
* Temperature controller: SINNY--Zhejiang
* Motor: OUBANG-Jiangsu
* Gas mixer instrument: US Imachine/ German WITT/ YiTeng, it's
optional.
* PLC control systerm: XINJIE
Technical Specification:
| Item: | Food Tray Skin Sealing Packing Machine YT-760L/3 | Body material: | SUS304 / 6061 Aluminum Alloy |
| Voltage: | 220V/380V 50-60Hz | Vacuum pump: | 100m³/h |
| Power: | 2100W | Air compressor: | 0.6-0.8Mpa |
| Air displacement vacuum pump: | 40 m³/h | N.W.: | about 350kgs |
| Product Size: | 700*900*1450cm | G.W.: | about 420kgs |
| Packing speed: | 1000 pcs/h | Air compressor: | 0.6-0.8Mpa |
| Driving mode: | Pneumatic | Air consumption: | 0.6 m³/h |
* Tray size: the Tray size is not limited in above sheet, we will
make the molds according to your packing cups size.
* The air compressor is not included in the price, customer need to
buy seperately.
Product Features
1. Adopt food grade 304 stainless steel and aluminum alloy, which
is comply with hygiene for machine used in food industry.
2. Applies “Vacuum – Gas Filling” technology. Vacuum the chamber
first, then fill in gas, much better than the old-fashion gas
flushing method, which guarantees gas purity, and saves gas
sources.
3.Work status indication: the machine has an operating program
status and failure real-time display function to monitor the
equipment to ensure the normal operation of the machine.
4. Date printing available by installing an inkjet with the
machine, but the machine price is not including the coding machine
5.Taiwan AIRTAC pneumatic elements.
6.Temperature control system: higher precision temperature control
system; Overheating alarm; Split type heating plate with grids,
guarantees better sealing quality.
7.The photoelectric eye automatically tracks and corrects the
sealing position, precise alignment of film printing
Why Choose Us:
Wenzhou YITENG Intelligent Equipment Company is a manufacture
located in #61 Building,Times Founders Park, Mayu Town, Ruian City,
Zhejiang Province. We are specialized in the production of Filling
Machines, Sealing Machines,Labeling Machines,Capping Machines,
coding Machines, Vacuum Packing Machines, Shrink Packing
Machines,and other machines. Buying from factory the price is
competitive and it’s helpful for you to get bigger market in your
country. Factory has powerful and rich experience of technical
team. Customers can always count on us. All customers are always
allowed to customize their own modified atmosphere packaging
machine by contacting us with requirement details.
