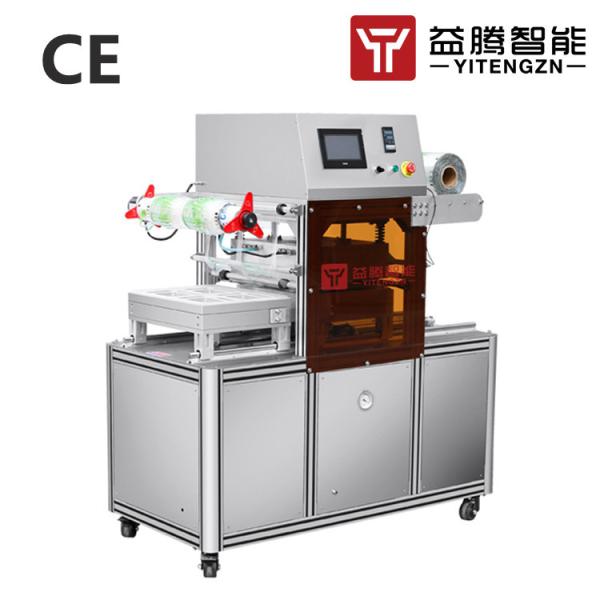

Tray Type Vacuum MAP Packaging Sealing Machine Gas flushing
YiTeng Machinery
The modified atmosphere packaging machine is a new type of fresh
lock modified atmosphere packaging machine which developed on the
basis of the box sealing machine. It is an intelligent device that
can extract out the air, fill in a certain proportion of nitrogen
or mixed gas, and then seal the tray.
1. This machine is suitable for all kinds of food tray packaging,
automatic filling N2 or gas mixer, sealing packaging, cutting, packaging finished
products and other steps.
2. It can intall a coding machine & a labeling machine if customer
needs.
3. The gas replacement rate: >98%.
4. The mixing accuracy error of fresh-keeping gas: US Imachine gas
mixer or German WITT gas minxer <0.5%; Our own home made Yiteng
mixer, for fixed rate it is < 1%, Adjustable proportioning mixer
is < 5%, it's up to customer's demands.
Product details:
Same molds tray/ cycle with coding machines:
Product Prameters:
| Item: | Food Tray Sealing Packing Machine | Body material: | SUS304 / 6061 Aluminum Alloy |
| Voltage: | 220V/380V 50-60Hz | Vacuum pump: | 100m³/h |
| Power: | 3000W | Air compressor: | 0.6-0.8Mpa |
| Air displacement vacuum pump: | 63 m³/h | N.W.: | about 200kgs |
| Product Size: | 140*70*156cm | G.W.: | about 250kgs |
| Packing speed: | 1800-2000pcs/h | Air compressor: | 0.6-0.8Mpa |
| Driving mode: | Electric + Pneumatic | Air consumption: | 0.6 m³/h |
* Tray size: the Tray size is not limited in above sheet, we will
make the molds according to your packing cups size.
* The air compressor is not included in the price, customer need to
buy seperately.
Related products:
Applications:
Main related configurations:
* Touch screen display: Shanghai FLEXEM
* Circuit breaker& transformer: Zhejiang CHINT
* Vacuum pump: ZD--Shanghai
* Temperature controller: SINNY--Zhejiang
* Motor: OUBANG-Jiangsu
* Gas mixer instrument: US Imachine/ German WITT/ YiTeng, it's
optional.
* PLC control systerm: XINJIE
Product Features
1. 304 stainless steel construction, comply with hygiene for
machine used in food industry.
2. Applies “Vacuum – Gas Filling” technology. Vacuum the chamber
first, then fill in gas, much better than the old-fashion gas
flushing method, which guarantees gas purity, and saves gas
sources.
3. Work status indication: Failsure worning system.
4. Using Taiwan AIRTAC pneumatic elements.
5. Free film design if client needs:
Why Choose Us:
Wenzhou YITENG Intelligent Equipment Company is a manufacture
located in #61 Building,Times Founders Park, Mayu Town, Ruian City,
Zhejiang Province. We are specialized in the production of Filling
Machines, Sealing Machines,Labeling Machines,Capping Machines,
coding Machines, Vacuum Packing Machines, Shrink Packing
Machines,and other machines. Buying from factory the price is
competitive and it’s helpful for you to get bigger market in your
country. Factory has powerful and rich experience of technical
team. Customers can always count on us. All customers are always
allowed to customize their own modified atmosphere packaging
machine by contacting us with requirement details.
