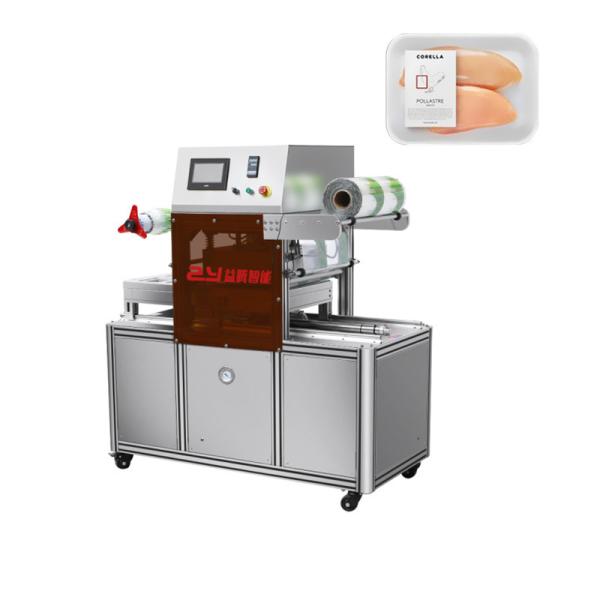

Tray Type Vacuum MAP Packaging Sealing Machine Gas flushing
YiTeng Machinery
Modified atmosphere packaging machine is to package food with
packaging materials with gas barrier performance. According to the
customer’s demand, a certain proportion of mixed gas of oxygen +
carbon dioxide + nitrogen, nitrogen + carbon dioxide and oxygen +
carbon dioxide is added into the packaging to prevent the decline
of food quality in physical, chemical and biological aspects, or
slow down the decline of quality, so as to prolong the shelf life
of food and improve food quality and price
This machine is designed two-way pneumatic tray packaging, it have
one more set sealing mold than common MAP machine. We put the trays
in the mold in one side and trays will be packed in the mold and
out in another direction. It greatly improves the efficiency of packaging and saves labor
cost.
1. This machine is suitable for all kinds of food box packaging,
automatic filling N2, sealing packaging, cutting, packaging
finished products and other steps.
2. It can intall a coding machine & a labeling machine if customer
needs.
3. Built-in cutter,dry and moist modes led indicator lights,
suction hose jars and container food gas flush
4. The mold shape can be customized according to the packaging
style selected by the customer.
5. The gas replacement rate: >98%.
6. The mixing accuracy error of fresh-keeping gas: US Imachine gas
mixer or German WITT gas minxer <0.5%; Our own Yiteng mixer, for
fixed rate it is < 1%, Adjustable proportioning mixer is <
5%, it's up to customer's demands.

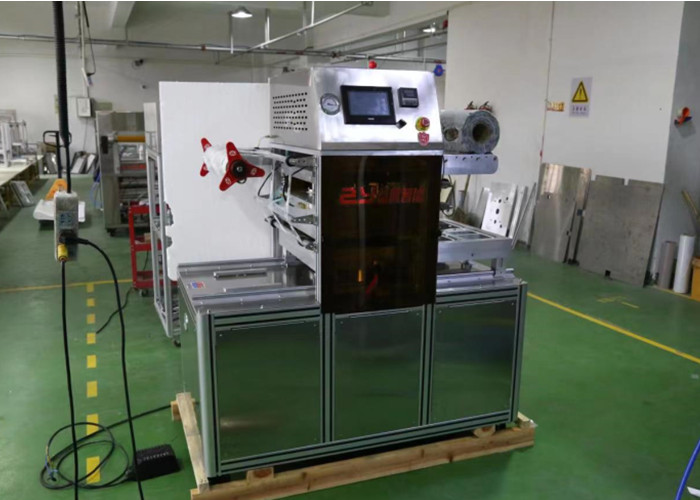

Product details:
Applications:
Main related configurations:
* Touch screen display: Shanghai FLEXEM
* Circuit breaker& transformer: Zhejiang CHINT
* Vacuum pump: ZD--Shanghai
* Temperature controller: SINNY--Zhejiang
* Motor: OUBANG-Jiangsu
* Gas mixer instrument: US Imachine/ German WITT/ YiTeng, it's
optional.
* PLC control systerm: XINJIE
Product Prameters:
| Item: | YT-SX760L/4 Vacuum MAP Machine with Two-Way Packing | Body material: | SUS304 / 6061 Aluminum Alloy |
| Voltage: | 220V/380V 50-60Hz | Vacuum pump: | 100m³/h |
| Power: | 3000W | Air compressor: | 0.6-0.8Mpa |
| Air displacement vacuum pump: | 63 m³/h | N.W.: | about 250kgs |
| Product Size: | 700*900*1450cm | G.W.: | about 300kgs |
| Packing speed: | 1000-1200 pcs/h | Temperature: | 0-300 ºC |
| Driving mode: | Electric + Pneumatic | Ultimate Vacuum: | -0.1MPA |
* Tray size: the Tray size is not limited in above sheet, we will
make the molds according to your packing cups size.
* The air compressor is not included in the price, customer need to
buy seperately.
Product Features
1. Structure Material: Machine main structure material adopt food
grade 304 stainless steel, which is comply with hygiene for machine
used in food industry.
2. Applies “Vacuum – Gas Filling” technology. Vacuum the chamber
first, then fill in gas, much better than the old-fashion gas
flushing method, which guarantees gas purity, and saves gas
sources.
3.Taiwan AIRTAC pneumatic elements.
4.Temperature control system: higher precision temperature control
system; Overheating alarm; Split type heating plate with grids,
guarantees better sealing quality.
5.The electric eye automatically tracks and corrects the sealing
position, precise alignment of film printing
6. We also can supply food container design and film design if
customer requires:
Why Choose Us:
Wenzhou YITENG Intelligent Equipment Company is a manufacture
located in #61 Building,Times Founders Park, Mayu Town, Ruian City,
Zhejiang Province. We are specialized in the production of Filling
Machines, Sealing Machines,Labeling Machines,Capping Machines,
coding Machines, Vacuum Packing Machines, Shrink Packing
Machines,and other machines. Buying from factory the price is
competitive and it’s helpful for you to get bigger market in your
country. Factory has powerful and rich experience of technical
team. Customers can always count on us. All customers are always
allowed to customize their own modified atmosphere packaging
machine by contacting us with requirement details.
